LF pictures of M23 ammunition trailer 8ton
Mech
Visit this Community
Ontario, Canada
Joined: July 20, 2002
KitMaker: 281 posts
Armorama: 226 posts
Posted: Thursday, February 26, 2009 - 10:00 AM UTC
Hi everyone

I'm scratch building this trailer and I'm looking for any pictures of this trailer especially the rear walking-beam type axle or bogie. I have done a search on the net and have come up empty.

Thank you

Ralph
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,465 posts
Armorama: 8,695 posts
Posted: Tuesday, April 12, 2011 - 02:52 PM UTC
I want to second Mechs' request for info on the M23. Seems like there is NOTHING out there on the web.

The MMiR High Speed Tractor book has one photo. Then the current addition of the "Standard Catalog of US Military Vehicles" has another and finally the book "The American Arsenal" has two more plus a dimension drawing.

Problem is: All these photos are front 3/4, passenger side images. No profile pictures, no detail shots on the suspension and no off side pictures to see what is happening on the driver's side.

If anyone out there has some reference information on this trailer I certainly hope they will share it with the rest of us.

Many Thanks

Mike K.
165th Signal Photo Co.
swoop411
Visit this Community
New York, United States
Joined: February 05, 2011
KitMaker: 16 posts
Armorama: 16 posts
Posted: Wednesday, April 13, 2011 - 01:52 AM UTC
I did some quick digging, and I found a place that does some reprinting of old Army manuals. What you need is Army TM 9-793.
http://www.robvanmeel.nl/?q=content/ord-maint-trailer-8ton-4wheel-ammo-m23-219-p

In the TM should be line schematics of the trailer. I use Army TM's at work and in the beginning of each one is usually an illustration of the vehicle/equipment. I would assume there would be more illustrations in a manual from 1944 considering the illiteracy rate back then.

As far as the axle construction is concerned, are you aware of how a walking axle operates? Centrally mounted, pivots on the mount. These are 10-ton drive axles but should look similar to the ones found on an 8-ton ammo trailer.


ETA: Was not trying to sound condescending! I was just curious if you understood the mechanics of the axle assembly. Also, I am unable to find a free version of the TM for you guys, not available on any .mil sites since the trailer was long ago scrapped.
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,465 posts
Armorama: 8,695 posts
Posted: Monday, May 23, 2011 - 06:54 AM UTC
Hello

How did you do in your request for photos of the M23? I too wish to model the M23 and I have found a few photos. Perhaps we could share what we have?

Regards
Michael Koenig
165th Signal Photo Reenactor Company
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,465 posts
Armorama: 8,695 posts
Posted: Monday, May 23, 2011 - 07:21 AM UTC
p.s. The photo that was recently posted showing walking beam suspension is not correct for the M23. What is shown in that photo is actually NOT what is referred to as a "walking beam". When the spring itself forms the teeter-totter that is not a "beam". A beam by its engineering definition is rigid. The M23 had fixed body mounted leaf springs on each side. These leaf springs support the center pivot of a rigid rocker arm or "walking beam" that in turn supports a spindle, brake assembly, wheel and tire at each of its' ends. Only one axle crosses under the trailer body and that is the axle for the center pivot. The four wheels ride only on short spindles, unlike those of the heavy trailer frame in the photo. The M23 was, overall a much lighter trailer so there were NO axles crossing under the trailer body in line with the wheels.
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,465 posts
Armorama: 8,695 posts
Posted: Monday, May 23, 2011 - 07:29 AM UTC
Here is one drawing from the TM for the M23. Unfortunately the TM is not as well illustrated as others I have seem. (Unfortunately there is no photo of the trailer up on jack stands with the wheels off like you would expect to see.) /Users/mike/Desktop/M23 walking beam.jpg
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,465 posts
Armorama: 8,695 posts
Posted: Monday, May 23, 2011 - 07:31 AM UTC
Sorry I am trying to upload the drawing from the TM but it doesn't seem to want to work???? Can anyone give me advice on uploading photos to Armorama?
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,465 posts
Armorama: 8,695 posts
Posted: Monday, May 23, 2011 - 08:04 AM UTC
I think this might work. Here's the photo"
http://photos.kitmaker.net/data/13711/thumbs/M23_walking_beam.jpg
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,465 posts
Armorama: 8,695 posts
Posted: Thursday, August 02, 2012 - 03:55 PM UTC
M23 Ammo Trailer now under construction in 1/35 scale. Body construction is well along and I start on the suspension this weekend.

Progress photos hosted here:

http://s1061.photobucket.com/albums/t461/165thspc/M23%20World%20War%202%20US%20Ammo%20Trailer/
Firstik
Joined: October 31, 2011
KitMaker: 86 posts
Armorama: 78 posts
Posted: Thursday, August 02, 2012 - 06:05 PM UTC
Looks interesting, are there any plans to cast this in resin?
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,465 posts
Armorama: 8,695 posts
Posted: Friday, August 03, 2012 - 04:49 PM UTC
Yes. Quite possibly. This is my trial prototype and I start on the mould patterns shortly.
Firstik
Joined: October 31, 2011
KitMaker: 86 posts
Armorama: 78 posts
Posted: Friday, August 03, 2012 - 08:37 PM UTC
That's good to hear. I guess this will look good with the HobbyBoss M4.
I will definitely be following this thread.
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,465 posts
Armorama: 8,695 posts
Posted: Thursday, August 09, 2012 - 03:46 PM UTC
Of course I want it to go behind my scratch built Mack NO but I am building the M4M HST from HobbyBoss as well
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,465 posts
Armorama: 8,695 posts
Posted: Saturday, August 11, 2012 - 10:09 AM UTC
More progress photos and dimension data added today.

http://s1061.photobucket.com/albums/t461/165thspc/M23%20World%20War%202%20US%20Ammo%20Trailer/


Mike
165th Signal Photo Reenactor Company
Firstik
Joined: October 31, 2011
KitMaker: 86 posts
Armorama: 78 posts
Posted: Saturday, August 11, 2012 - 08:59 PM UTC
Such an interesting subject, that additional info and photos are great!
Plasticbattle
#003
Visit this Community
Donegal, Ireland
Joined: May 14, 2002
KitMaker: 9,763 posts
Armorama: 7,444 posts
Posted: Saturday, August 11, 2012 - 10:07 PM UTC
Hi Michael. Really nice scracth work. Never heard of this trailer type before, but as a model it looks so cool. Love that heavy dumper look.
redleg12
Visit this Community
New Jersey, United States
Joined: March 11, 2007
KitMaker: 872 posts
Armorama: 831 posts
Posted: Saturday, August 11, 2012 - 11:49 PM UTC
Love the scratch work. Very nice. Will need a bunch of ammunition to fill the cargo bed. Keep the updates coming

Rounds Complete!!
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,465 posts
Armorama: 8,695 posts
Posted: Sunday, August 12, 2012 - 10:25 AM UTC
The M23 could carry: 96 - 155mm rounds . . . 62 - 203mm rounds . . . or only 32 of the 240mm shells which would keep that big gun going for about a half hour.
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,465 posts
Armorama: 8,695 posts
Posted: Friday, August 17, 2012 - 01:21 AM UTC
That base plate inside the floor of the trailer is proving to be a real bear!

Mike
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,465 posts
Armorama: 8,695 posts
Posted: Saturday, August 18, 2012 - 07:40 AM UTC

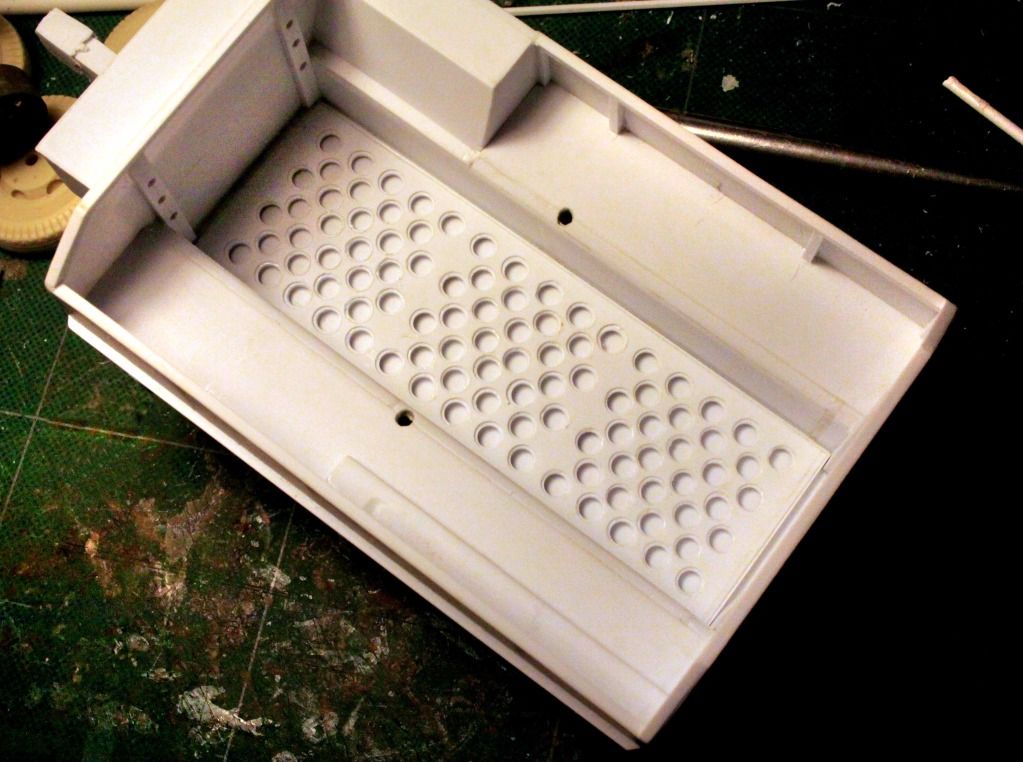

The interior ammo base plate partially completed

This is just the first two layers for the floor. Which only covers the 155mm rounds!

____________________________________________________________________

I don't care what you play, as long as you play it LOUD!
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,465 posts
Armorama: 8,695 posts
Posted: Saturday, August 18, 2012 - 08:08 AM UTC

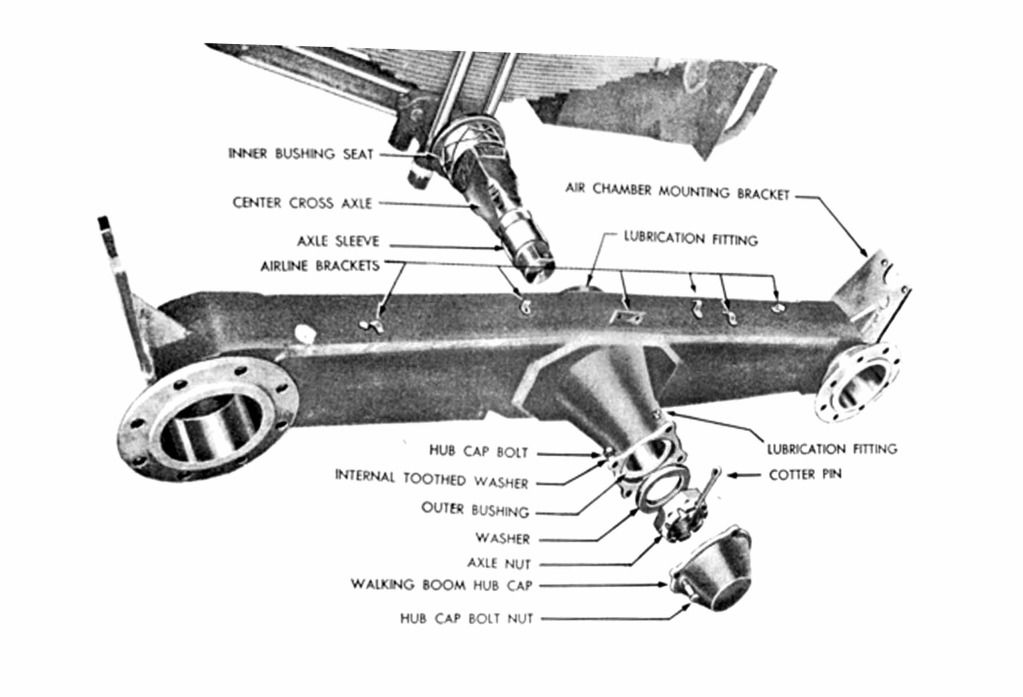

Walking Beam Suspension

Walking beam axle assembly for the M23. Only the central cross axle was sprung. Photo is from the TM on the M23.
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,465 posts
Armorama: 8,695 posts
Posted: Saturday, August 18, 2012 - 09:42 AM UTC
M23 hitched to the Mack NO 7 1/2 ton Prime Mover

Another photo from the Technical Manual
ericadeane
Visit this Community
Michigan, United States
Joined: October 28, 2002
KitMaker: 4,021 posts
Armorama: 3,947 posts
Posted: Saturday, August 18, 2012 - 10:52 AM UTC
Just fantastic work Mike. I love to see scratchbuilt stuff.
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,465 posts
Armorama: 8,695 posts
Posted: Sunday, August 19, 2012 - 07:35 AM UTC
If interested in scratch building please check out the following link to my scratch built Mack NO Artillery Tractor. It took a gold metal at the AMPS show 3 years ago in Auburn, IN at the Victory Museum.

http://s1061.photobucket.com/albums/t461/165thspc/M23%20World%20War%202%20US%20Ammo%20Trailer/
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,465 posts
Armorama: 8,695 posts
Posted: Monday, August 20, 2012 - 03:05 AM UTC
Sorry I listed the wrong file.

The scratch build Mack NO photo file is at:

http://s1061.photobucket.com/albums/t461/165thspc/WWII%20Mack%20NO%20Artillery%20Tractor/
