Here's one I started for a Campaign, and shockingly never finish...
Finally making some progress now the new workshop is done.

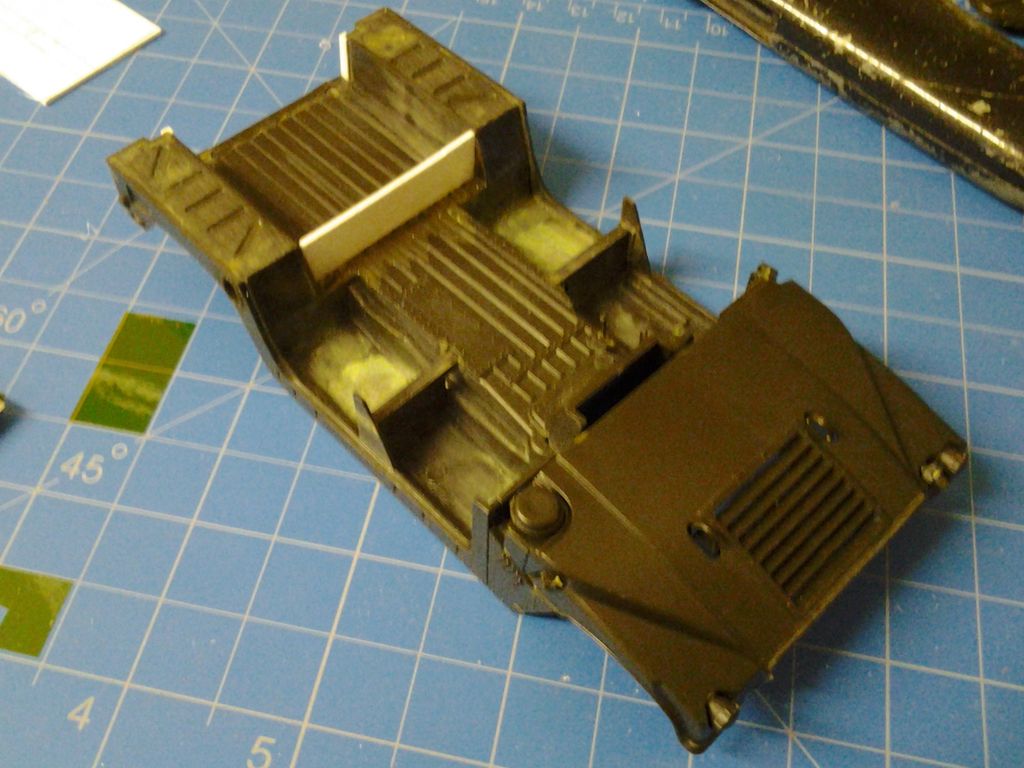

It's going to be a lifted Humvee w/ armor.

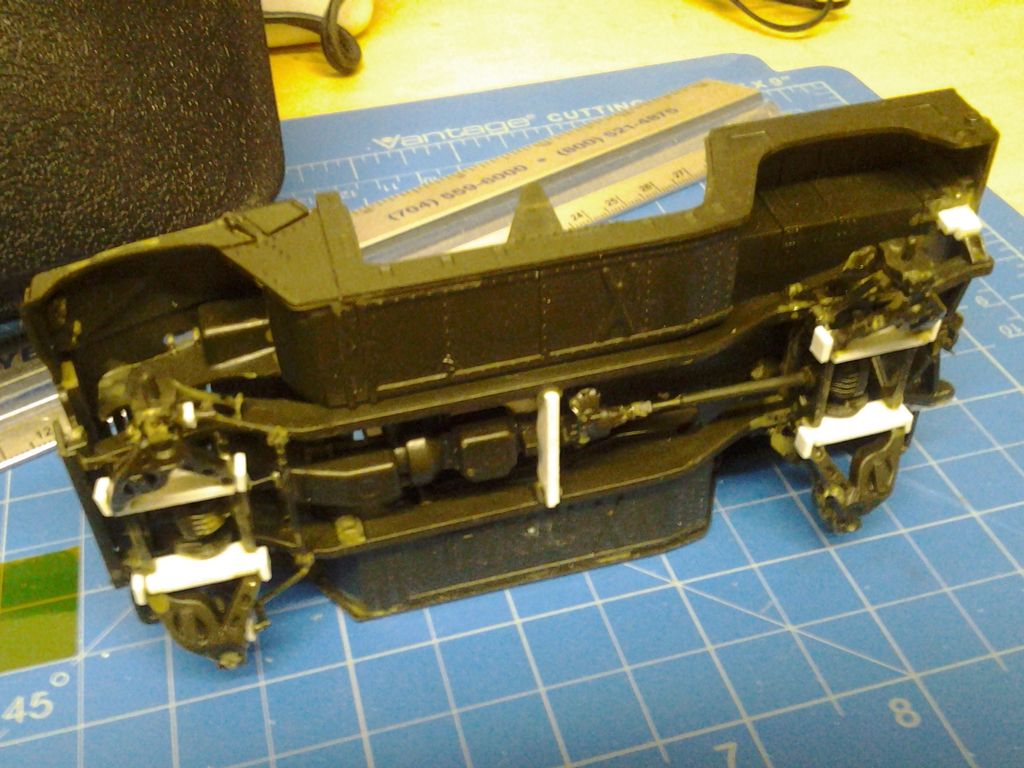

The old stuff:







35th-scale
Visit this Community
Kildare, Ireland
Joined: November 21, 2007
KitMaker: 3,212 posts
Armorama: 2,807 posts
Posted: Wednesday, November 19, 2014 - 01:54 PM UTC
A "raised" Humvee is not too far-fetched what-if idea Tom. Oshkosh did propose one previously:



Nice tidy work you have done so far....will follow with interest.
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
Armorama: 8,684 posts
Posted: Wednesday, November 19, 2014 - 06:31 PM UTC
I LIKE IT!

And the fact that there was an actual prototype vehicle seals the deal.

Are you gonna go with the stock tires or maybe you could find a resin set made for a MaxPro or something?
Neo
Visit this Community
North Carolina, United States
Joined: January 20, 2005
KitMaker: 916 posts
Armorama: 758 posts
Posted: Thursday, November 20, 2014 - 06:35 AM UTC
Thanks Sean.
I saw that photo when I was doing research for my build - very inspiring.

Thanks Michael.
Stock tires or something scratched. I run a very low budget operation - LoL

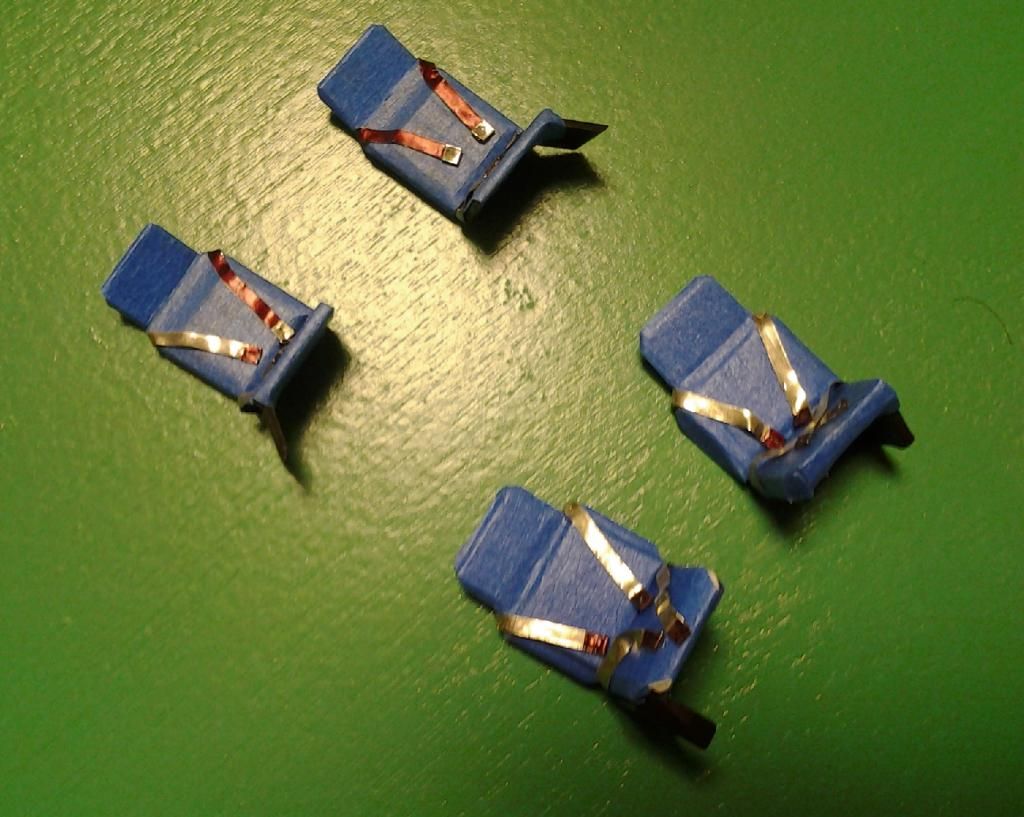

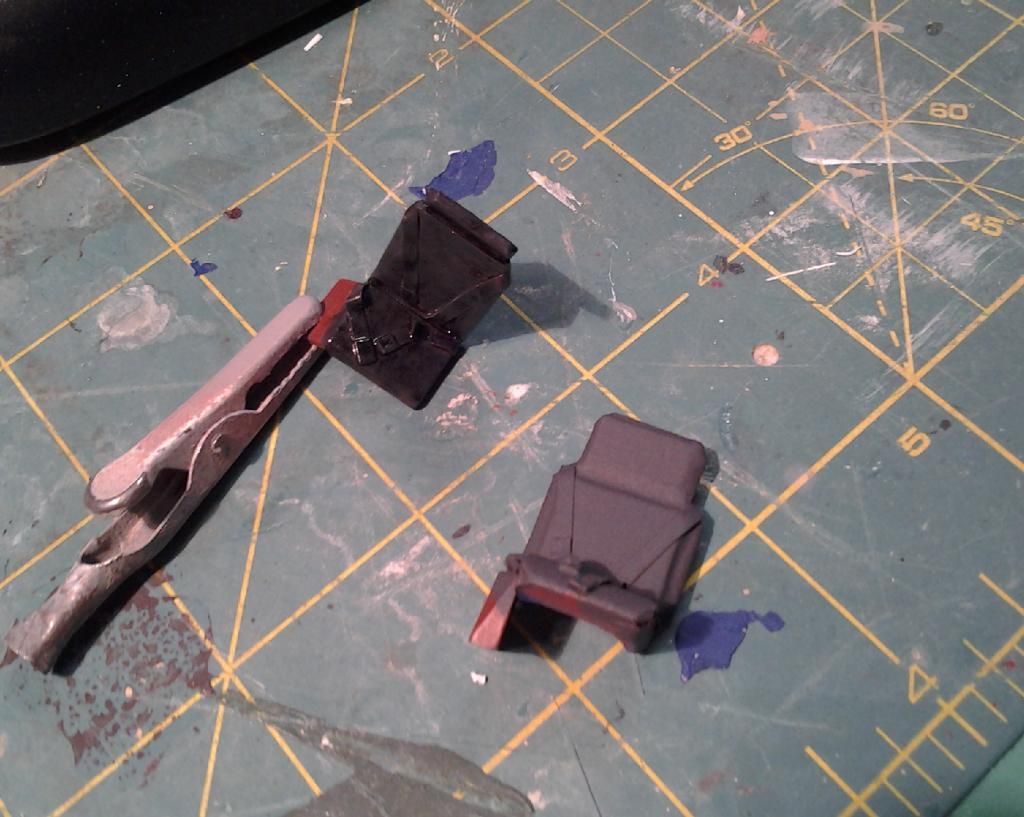

And some new work - Seats. OTB units alittle cheesy for this unit.

Painters Tape - The Modelers Best Friend


Auto Primer - The Modelers Best Friend


Old Wash - The Modelers Best Friend

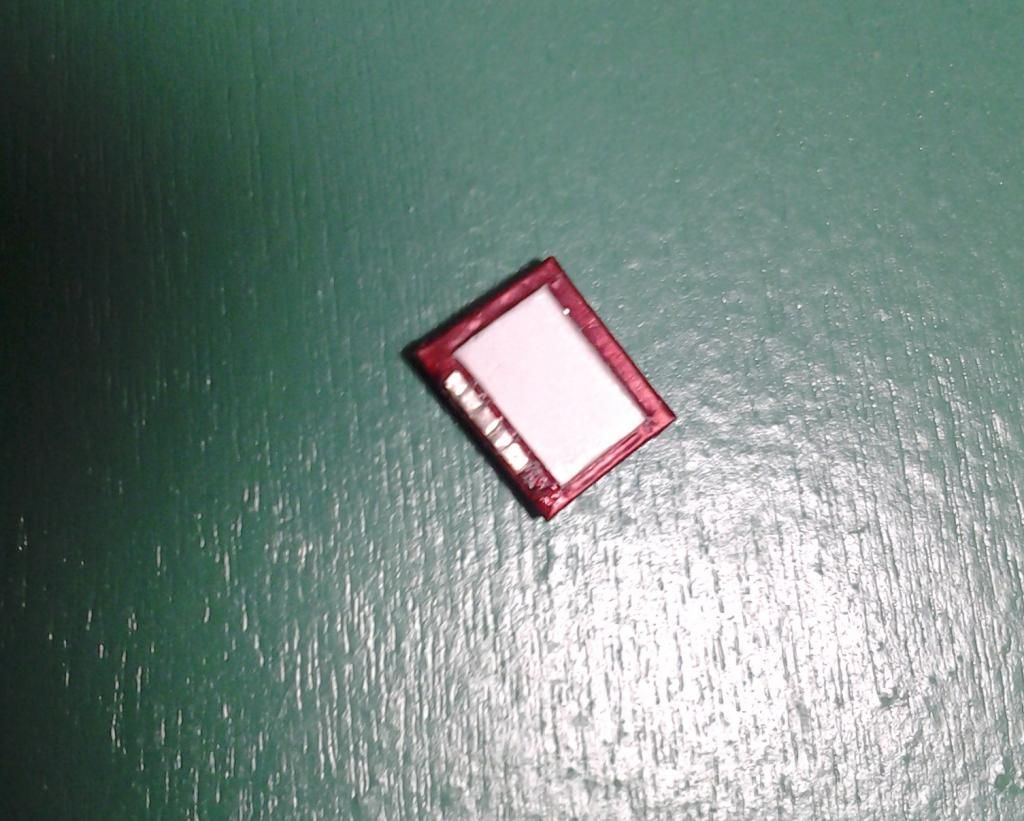

Computer Screen




Next up: Comm Gear / Radios...


Neo
Visit this Community
North Carolina, United States
Joined: January 20, 2005
KitMaker: 916 posts
Armorama: 758 posts
Posted: Thursday, November 20, 2014 - 08:54 AM UTC
One done, three to go...
This is what they should look like.



35th-scale
Visit this Community
Kildare, Ireland
Joined: November 21, 2007
KitMaker: 3,212 posts
Armorama: 2,807 posts
Posted: Thursday, November 20, 2014 - 01:29 PM UTC

Quoted Text

Stock tires or something scratched. I run a very low budget operation - LoL



I'm sure if you ask nice on here someone who has done an M-ATV, Maax-Pro or one of the new trucks and got the resin wheel sets for there build, would be willing to part with the origional kit wheels & vinal tyres. Folks around here are nice like that. Being raised it really needs the larger wheels....
Neo
Visit this Community
North Carolina, United States
Joined: January 20, 2005
KitMaker: 916 posts
Armorama: 758 posts
Posted: Monday, November 24, 2014 - 04:15 AM UTC
Thanks Sean, I'll give it a try.
If anyone has some wheels they don't want PM me.

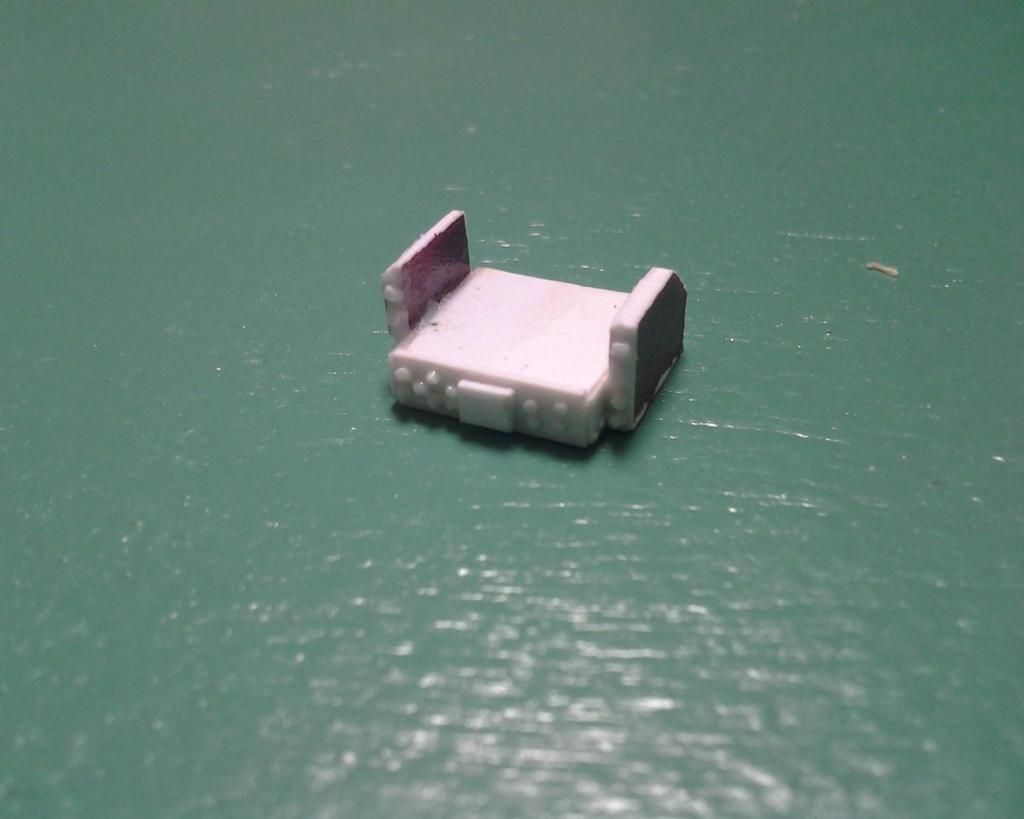

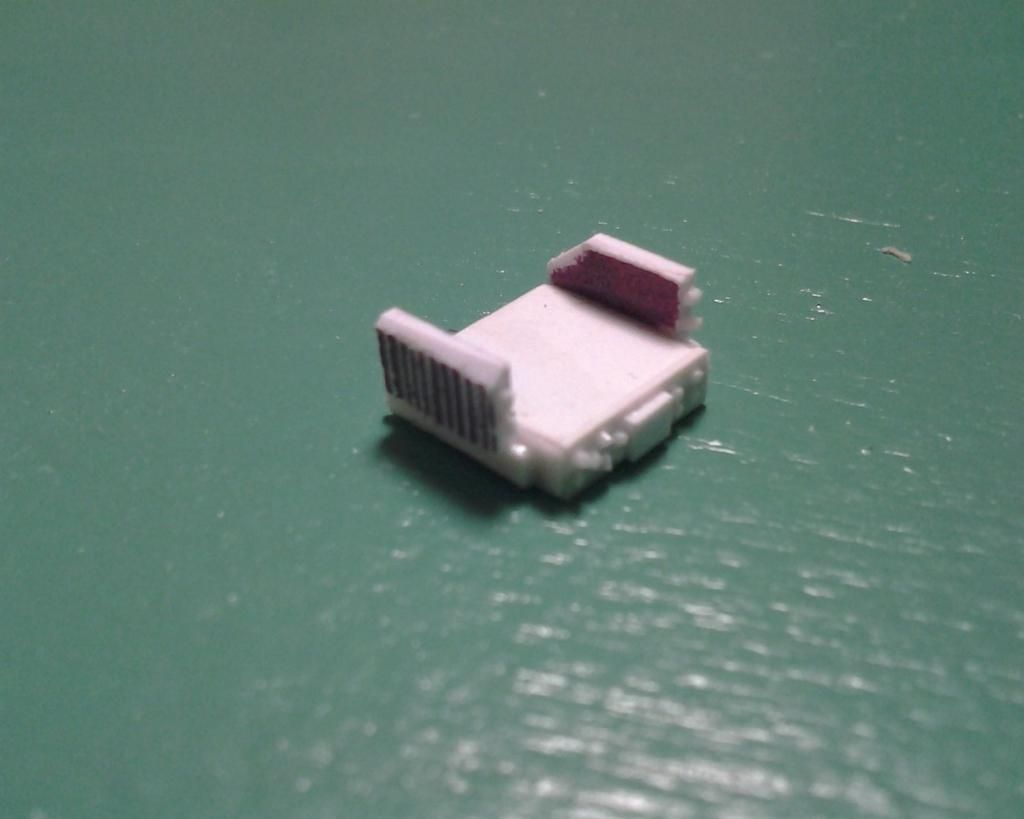

Continuing on - Sincgars 1439 Radio...
What is should look like (for discussion purpose only)...



And my version...



Needs cables - looking for right size wire.


Neo
Visit this Community
North Carolina, United States
Joined: January 20, 2005
KitMaker: 916 posts
Armorama: 758 posts
Posted: Tuesday, November 25, 2014 - 09:13 AM UTC

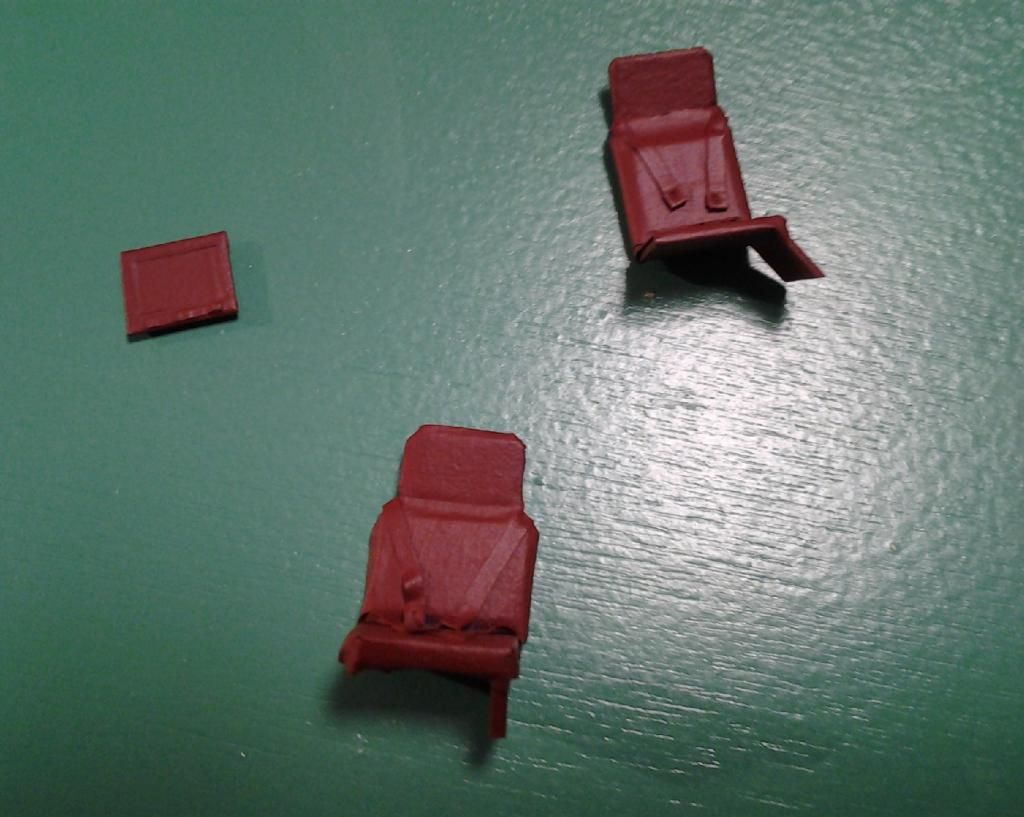

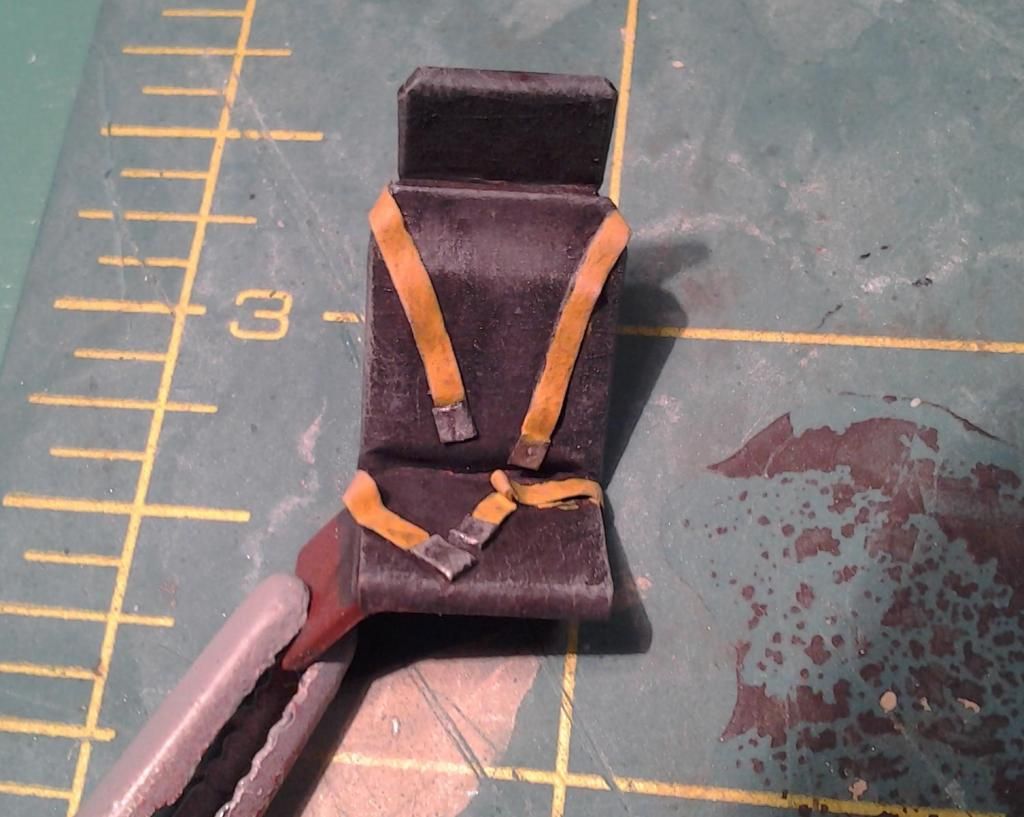

Seats done, set them in to see how the new & improved version fits. AC duct in too.
Radio... almost there (currently up to 27 parts - LoL)...





I haven't been on the site for awhile after we moved. So probably a lot of folks don't know this is about 6 months of work at my normal, glacial pace of building !

Sooo slowwww...

HeavyArty
Visit this Community
Florida, United States
Joined: May 16, 2002
KitMaker: 17,690 posts
Armorama: 13,739 posts
Posted: Tuesday, November 25, 2014 - 05:26 PM UTC


Pretty good job on the SINCGARS. The radio itself is too long though. It should be flush with the front of the mount.

heliman
Visit this Community
New York, United States
Joined: June 14, 2010
KitMaker: 702 posts
Armorama: 604 posts
Posted: Wednesday, November 26, 2014 - 02:15 AM UTC
Pm sent on tires!

Neo
Visit this Community
North Carolina, United States
Joined: January 20, 2005
KitMaker: 916 posts
Armorama: 758 posts
Posted: Friday, November 28, 2014 - 04:37 AM UTC

Quoted Text


Pretty good job on the SINCGARS. The radio itself is too long though. It should be flush with the front of the mount.



Gino, You are spot on w/ that. Now I look at it - I set the radio out where the grab handles should be...
I tried to pull it apart but NoGo, so now it's the "new & improved" version.
Neo
Visit this Community
North Carolina, United States
Joined: January 20, 2005
KitMaker: 916 posts
Armorama: 758 posts
Posted: Saturday, November 29, 2014 - 08:43 PM UTC

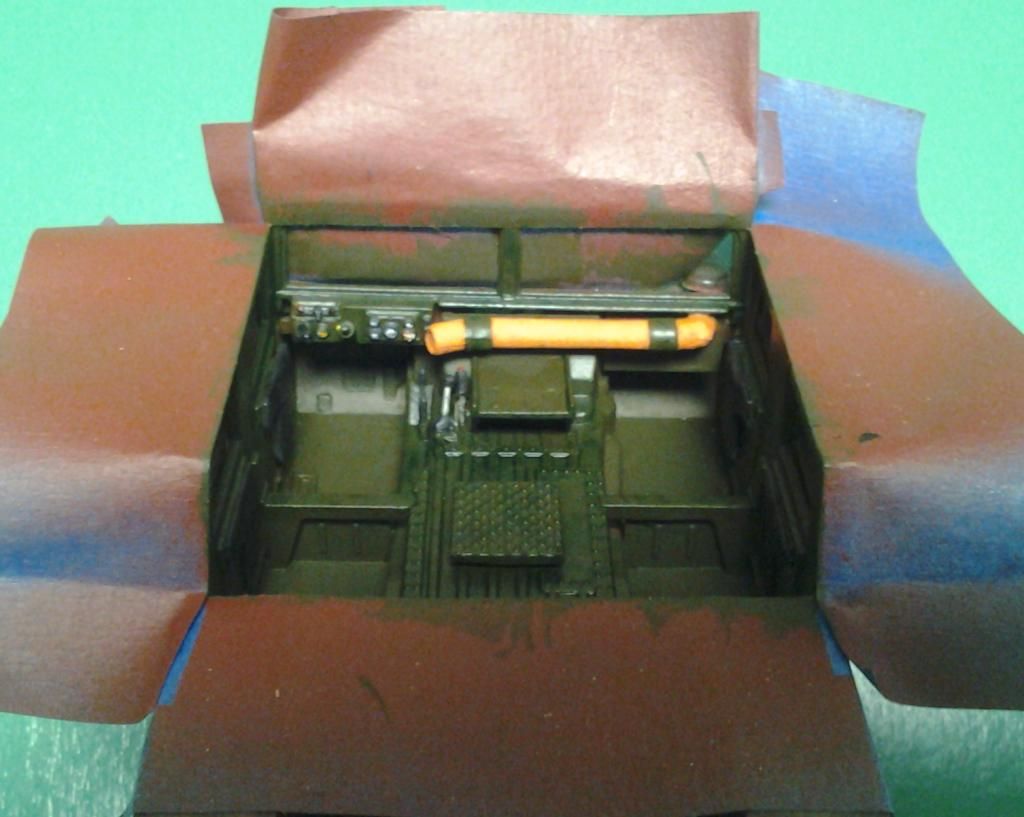

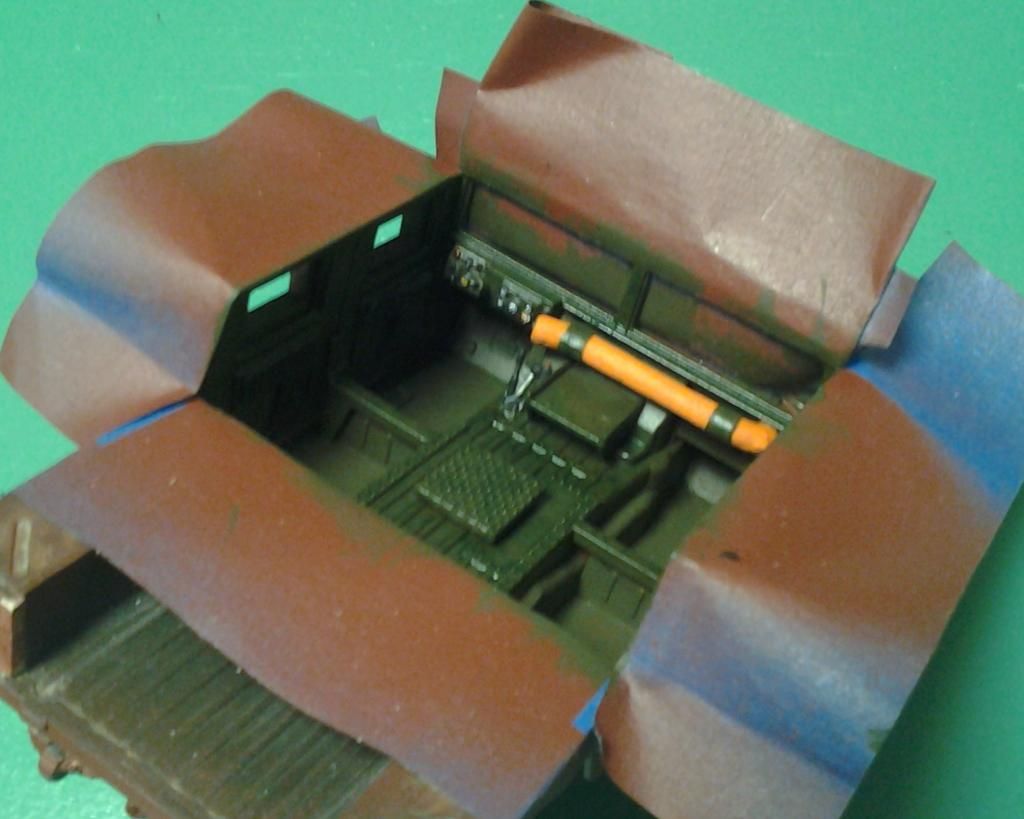

Interior - almost finished !
Paint & oil wash, just needs little dry brushing (dull coat = maybe)...




spoons
Visit this Community
England - East Anglia, United Kingdom
Joined: January 09, 2008
KitMaker: 527 posts
Armorama: 500 posts
Posted: Saturday, November 29, 2014 - 09:08 PM UTC
Great job so far Tom... have you checked out the one i did?
Neo
Visit this Community
North Carolina, United States
Joined: January 20, 2005
KitMaker: 916 posts
Armorama: 758 posts
Posted: Sunday, November 30, 2014 - 01:15 AM UTC

Quoted Text


Great job so far Tom... have you checked out the one i did?



Thanks Stephen - I did see yours (OUTSTANDING by the way) and it was a big inspiration & motivator for me to get off my butt and build...
Mine is mild compared to all the work you did.



I'm having trouble finding the right sized / look for the wheels.
Any suggestions?

Neo
Visit this Community
North Carolina, United States
Joined: January 20, 2005
KitMaker: 916 posts
Armorama: 758 posts
Posted: Tuesday, December 02, 2014 - 09:25 AM UTC
Soo...

I could not find wheels that I liked. What to do in 2014 you ask? I 3D Print them at Shapeways of course.
Not full wheels, these are just "skins" for the existing parts. The ID of this fits over the OD of the kit wheels. Little super glue, little putty = new bigger, fatter, manly wheel ! LoL
This went against all (self-emposed) rules for this build (to spend any money)! But got to have wheels...



Due in the 12th +/-. My first 3D Printed Part - hope it does not suck.
35th-scale
Visit this Community
Kildare, Ireland
Joined: November 21, 2007
KitMaker: 3,212 posts
Armorama: 2,807 posts
Posted: Tuesday, December 02, 2014 - 01:47 PM UTC
Interesting approach....I hope it turns out good.
bison126
Visit this Community
Correze, France
Joined: June 10, 2004
KitMaker: 5,329 posts
Armorama: 5,204 posts
Posted: Tuesday, December 02, 2014 - 04:03 PM UTC

Quoted Text

A "raised" Humvee is not too far-fetched what-if idea Tom. Oshkosh did propose one previously:



Nice tidy work you have done so far....will follow with interest.



Where are the ladders to climb aboard stored?
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
Armorama: 8,684 posts
Posted: Tuesday, December 02, 2014 - 06:42 PM UTC

Quoted Text

Soo...

I could not find wheels that I liked. What to do in 2014 you ask? I 3D Print them at Shapeways of course.
Not full wheels, these are just "skins" for the existing parts. The ID of this fits over the OD of the kit wheels. Little super glue, little putty = new bigger, fatter, manly wheel ! LoL
This went against all (self-emposed) rules for this build (to spend any money)! But got to have wheels...



Due in the 12th +/-. My first 3D Printed Part - hope it does not suck.



Assuming that I could figure out how to create the necessary computer file using my CAD program, might I ask what it costs (approximately) to run off four of these parts?
matt
Staff MemberCampaigns Administrator
Visit this Community
New York, United States
Joined: February 28, 2002
KitMaker: 5,957 posts
Armorama: 2,956 posts
Posted: Tuesday, December 02, 2014 - 06:44 PM UTC

Quoted Text

Due in the 12th +/-. My first 3D Printed Part - hope it does not suck.



If you ordered them in anything other than "polished", Frosted detail or Frosted ultra detail, they'll have a grainy appearance which paint may or may not help.

I've only been making parts available in the FD and FUD in my Shapeways store unless the item is larger.
spoons
Visit this Community
England - East Anglia, United Kingdom
Joined: January 09, 2008
KitMaker: 527 posts
Armorama: 500 posts
Posted: Wednesday, December 03, 2014 - 12:54 AM UTC
Hi Tom
Great build so far... yea the wheels i used on mine were from A M923 Resin set i had spare. If your printed parts fit ok they should look the part...should be able to keep the HUMVEE wheel detail as well.
Neo
Visit this Community
North Carolina, United States
Joined: January 20, 2005
KitMaker: 916 posts
Armorama: 758 posts
Posted: Wednesday, December 03, 2014 - 06:46 AM UTC
Thanks Sean - I think it will work OK.



Quoted Text

Where are the ladders to climb aboard stored?

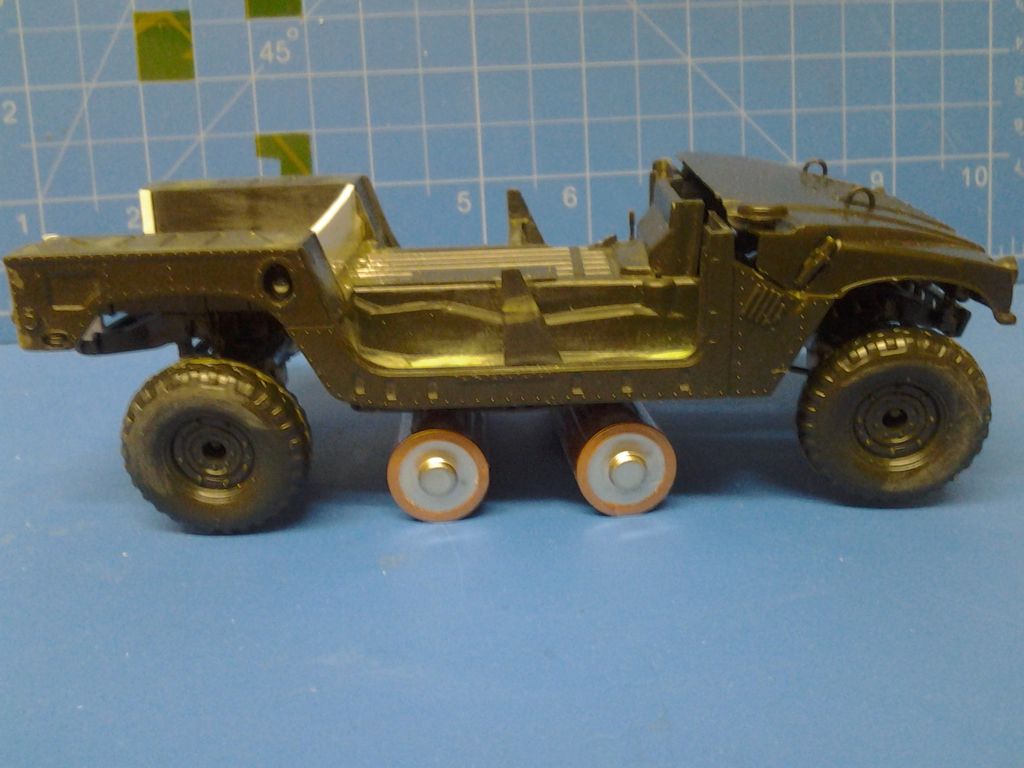

Why - It's actually not that high (24 - 30 scale inches to the door frame).


Michael - five were just shy of $18 (including shipping).



Matt - I got Super Strong & Flexible (polished). Any good? I have a backup plan if there not smooth...


Thanks Stephen - I could not find the size I need so this was the only way. Thinking it's going to work.
Neo
Visit this Community
North Carolina, United States
Joined: January 20, 2005
KitMaker: 916 posts
Armorama: 758 posts
Posted: Thursday, December 11, 2014 - 04:09 AM UTC

Hi Thomas,

An item we made in the future is now on its way to you!
This shipment includes the following item:
Order #83278 - 5 x TYRE SKIN in White Strong & Flexible Polished

Kind regards,
The Shapeways Team


SCHWWET !
My first printed parts on the way! Hello 21st. Century...
LoL
35th-scale
Visit this Community
Kildare, Ireland
Joined: November 21, 2007
KitMaker: 3,212 posts
Armorama: 2,807 posts
Posted: Thursday, December 11, 2014 - 01:54 PM UTC
"an item we made in the future" - timetravel too Welcome to the 22nd century
Neo
Visit this Community
North Carolina, United States
Joined: January 20, 2005
KitMaker: 916 posts
Armorama: 758 posts
Posted: Wednesday, December 17, 2014 - 08:36 AM UTC
Wheels in, just skins (you can see the orig. under the wrap).
Kind of rough, though it would look good on a tyre.
Don't know, might seal them / smooth it out some. Half painted to see how it might look.

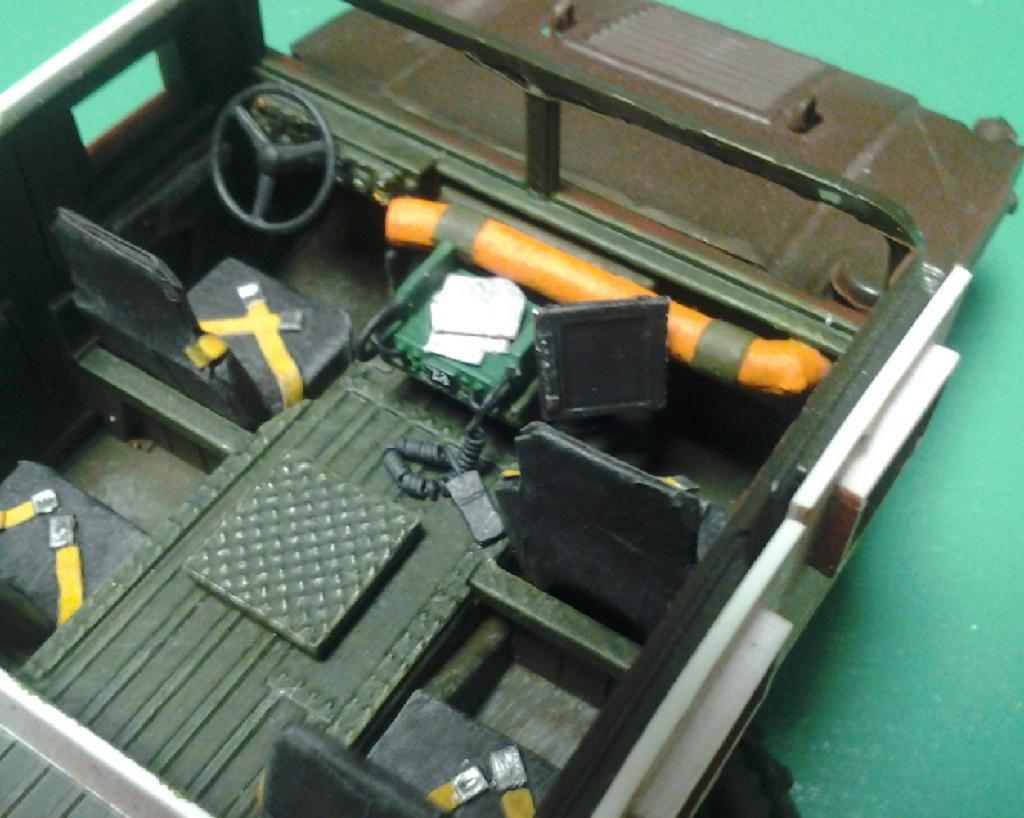

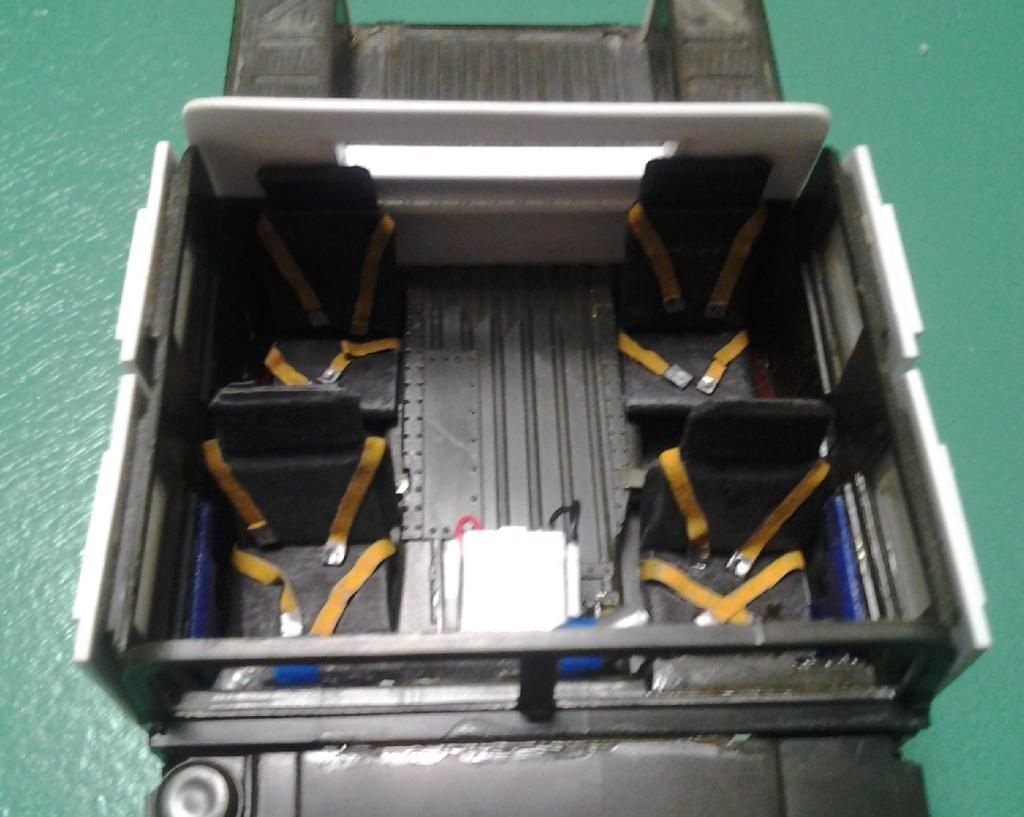

Little (very) more work on interior. Finished painting / weathering, roof & back window done too. Radio & Computer in.


And some S/B detail, an old LBE to hang over a seat.


Not much done - Feel's like I'm slowing down to my lazy place again... I'll blame it on the weather - LoL !
Neo
Visit this Community
North Carolina, United States
Joined: January 20, 2005
KitMaker: 916 posts
Armorama: 758 posts
Posted: Friday, January 09, 2015 - 09:00 PM UTC

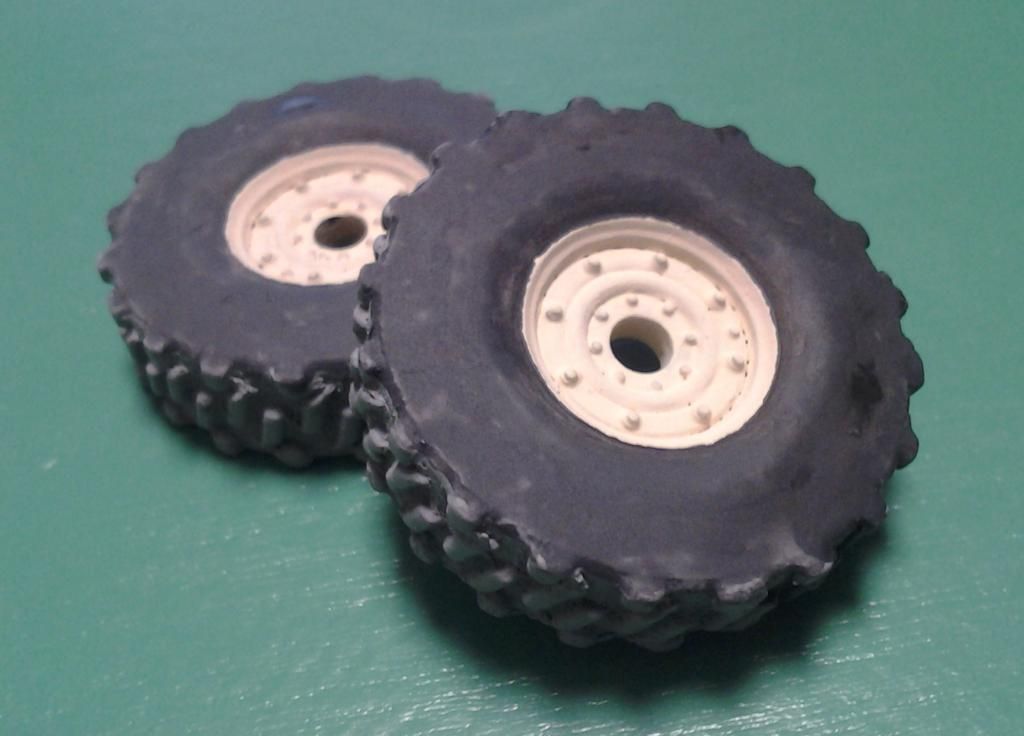

Tyres Done...

FYI - This process to build up wheel size was not the greatest idea. Took forever, did not save any money, looks OK... Was an experiment - would NOT do it again.

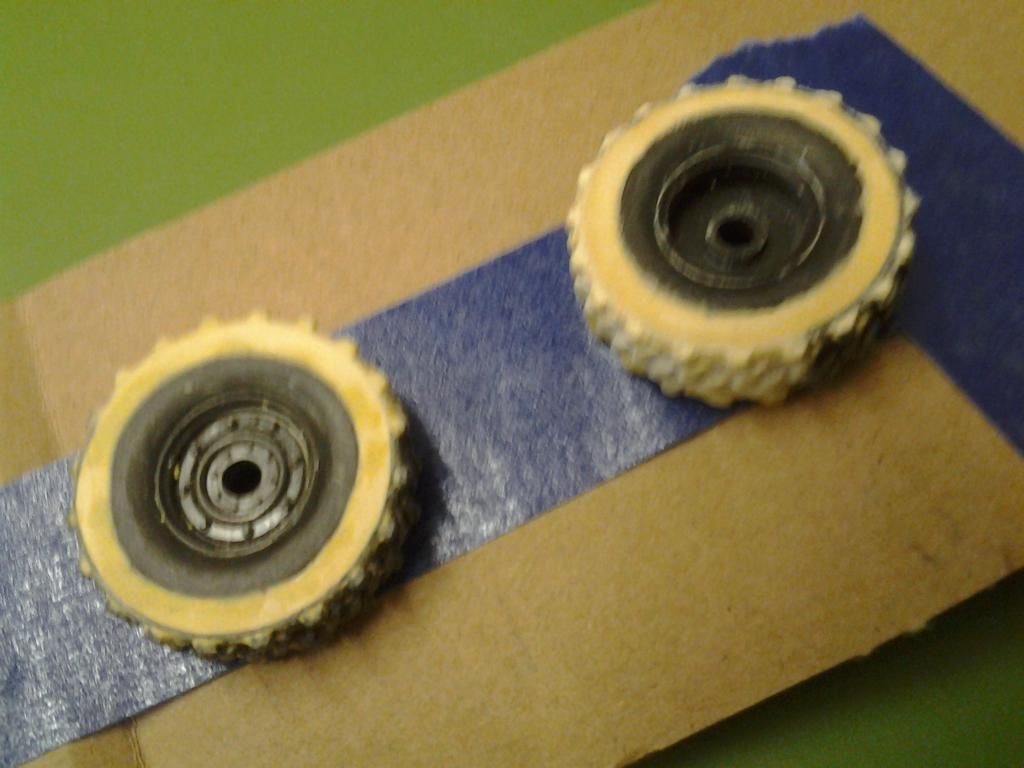

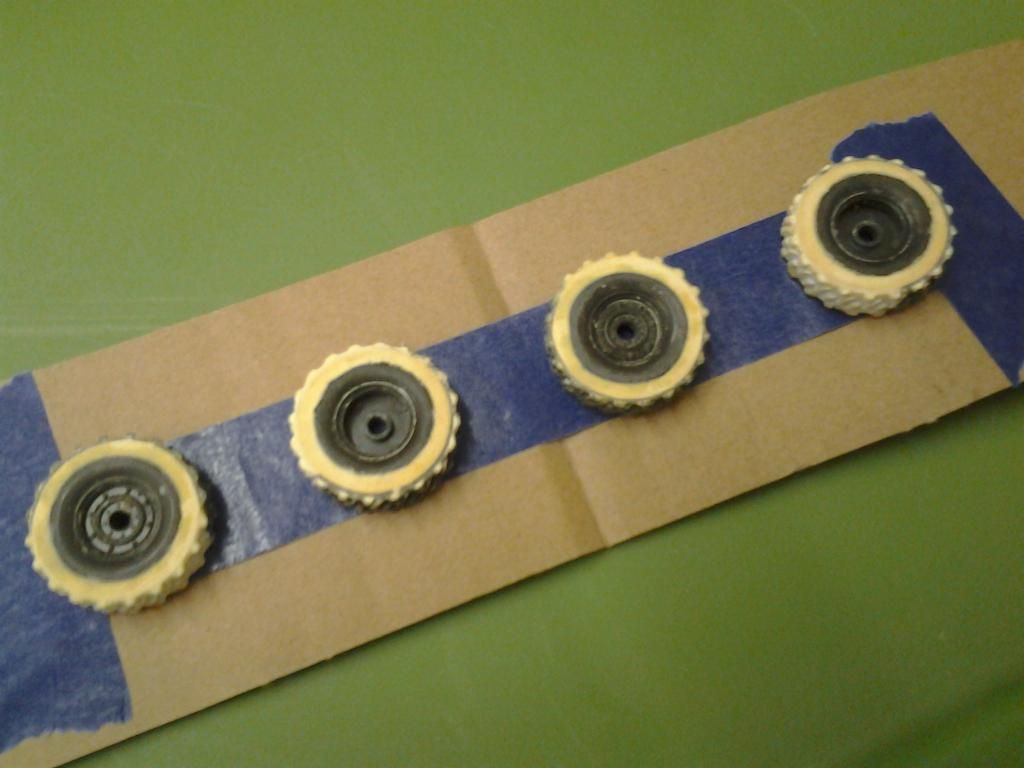

Assembled & Fill / Putty

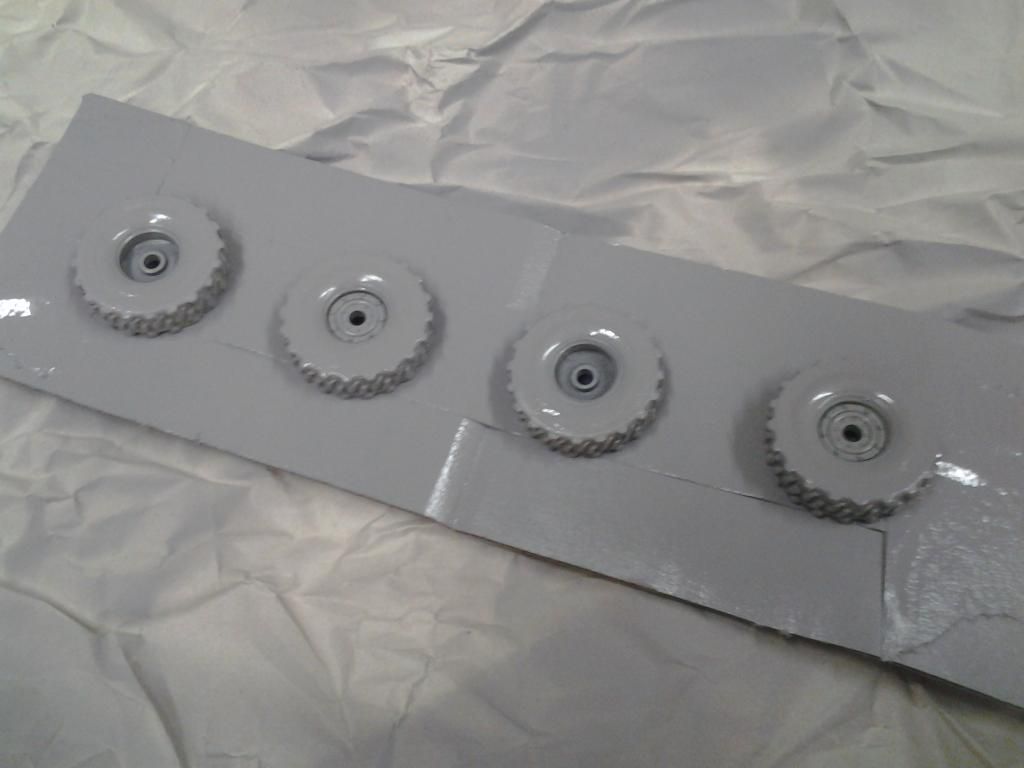

Primed

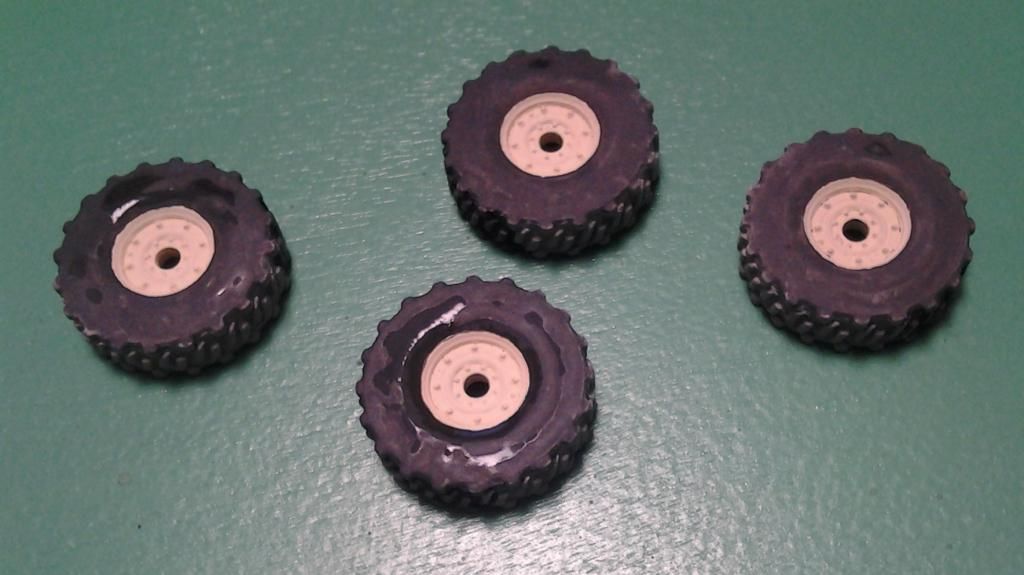

Painted

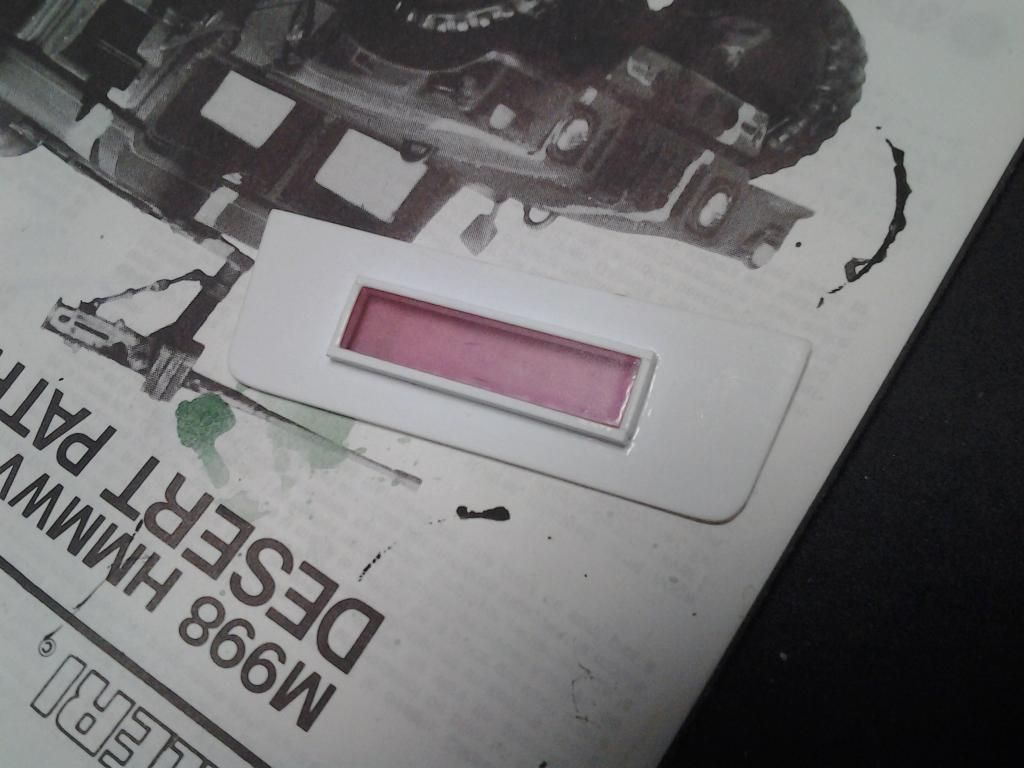

Moving on to windows, added lite tint.
