Hi Donald

Thanks for an excellent build log. A question if I may? I am mid way through my own build of this kit although I got a badly moulded one and have had to repair many parts. I want to display the rear tailgate dropped and supported by its chain. Despite numerous pic searches I can’t seem to find a clear one of how the tailgate hook and chain are fixed to the main body. Do you have any info? Much appreciated and keep up the good work.

Andy
Removed by original poster on 10/16/20 - 14:06:55 (GMT).
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
Armorama: 8,684 posts
Posted: Saturday, October 17, 2020 - 12:39 AM UTC

Quoted Text

Thank You, it helps a lot.
I didn't realize there were more rollers inside.
Regards.
Donald



The front bumper roller set is called a Fairlead and allows the winch cable to be threaded thru to exit forward on the vehicle when needed.

They may not have been modeled on the kit but in reality the necessary frame mounted shelves and rollers would have been present on the vehicle to route the cable through to the front.

But then doesn't appear all vehicles had this feature so your model, as built, is correct.

Sorry for coming rather late to the party here:


Here is my somewhat horrible photo of the Diamond T in the Victory Museum, Auburn, IN. You can just see the bumper mounted fairlead present there.

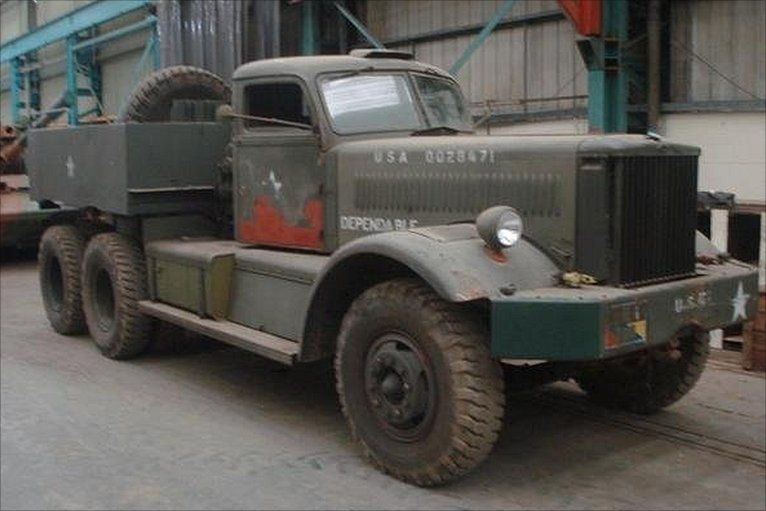

But then this photo, found on the internet doesn't seem to have one.


But then in this Diamont T ad drawing there is clearly a fairlead present.
165thspc
#521
Visit this Community
Kentucky, United States
Joined: April 13, 2011
KitMaker: 9,454 posts
Armorama: 8,684 posts
Posted: Saturday, October 17, 2020 - 01:40 AM UTC

Quoted Text

Hi Donald

Thanks for an excellent build log. A question if I may? I am mid way through my own build of this kit although I got a badly moulded one and have had to repair many parts. I want to display the rear tailgate dropped and supported by its chain. Despite numerous pic searches I can’t seem to find a clear one of how the tailgate hook and chain are fixed to the main body. Do you have any info? Much appreciated and keep up the good work.

Andy



The two tailgate chains SHOULD be of exactly the same length. This was the common construction practice on all pickup truck tailgates up through the 50's. Two chains of equal length with hooks on the end. In the down position the hook would go through the bracket on the tailgate as seen here. In the up position the hook would go through both the tailgate bracket and the eyelet on the truck body to lock the gate in place. ** Operators would usually put a cloth sleeve or a piece of old hose over the chain to keep it from clanging on the truck body every time the vehicle stopped.



** Donald, you had a question mark on your photo earlier next to the folded tailgate chain on your model. This arrangement for the tailgate in the up position is exactly correct.
simonking
Visit this Community
England - East Midlands, United Kingdom
Joined: March 02, 2011
KitMaker: 128 posts
Armorama: 124 posts
Posted: Saturday, October 17, 2020 - 02:06 AM UTC
Model 980 had no front fairlead, Model 981 had a longer winch cable, front fairlead in the LHS of the front bumper and presumably additional pulleys to feed the cable along the chassis to the front
Muftyman
Visit this Community
Praha, Czech Republic
Joined: March 12, 2011
KitMaker: 29 posts
Armorama: 18 posts
Posted: Saturday, October 17, 2020 - 04:33 AM UTC
Thank you so much for the pic - it really is a great help.

Best

Andy
